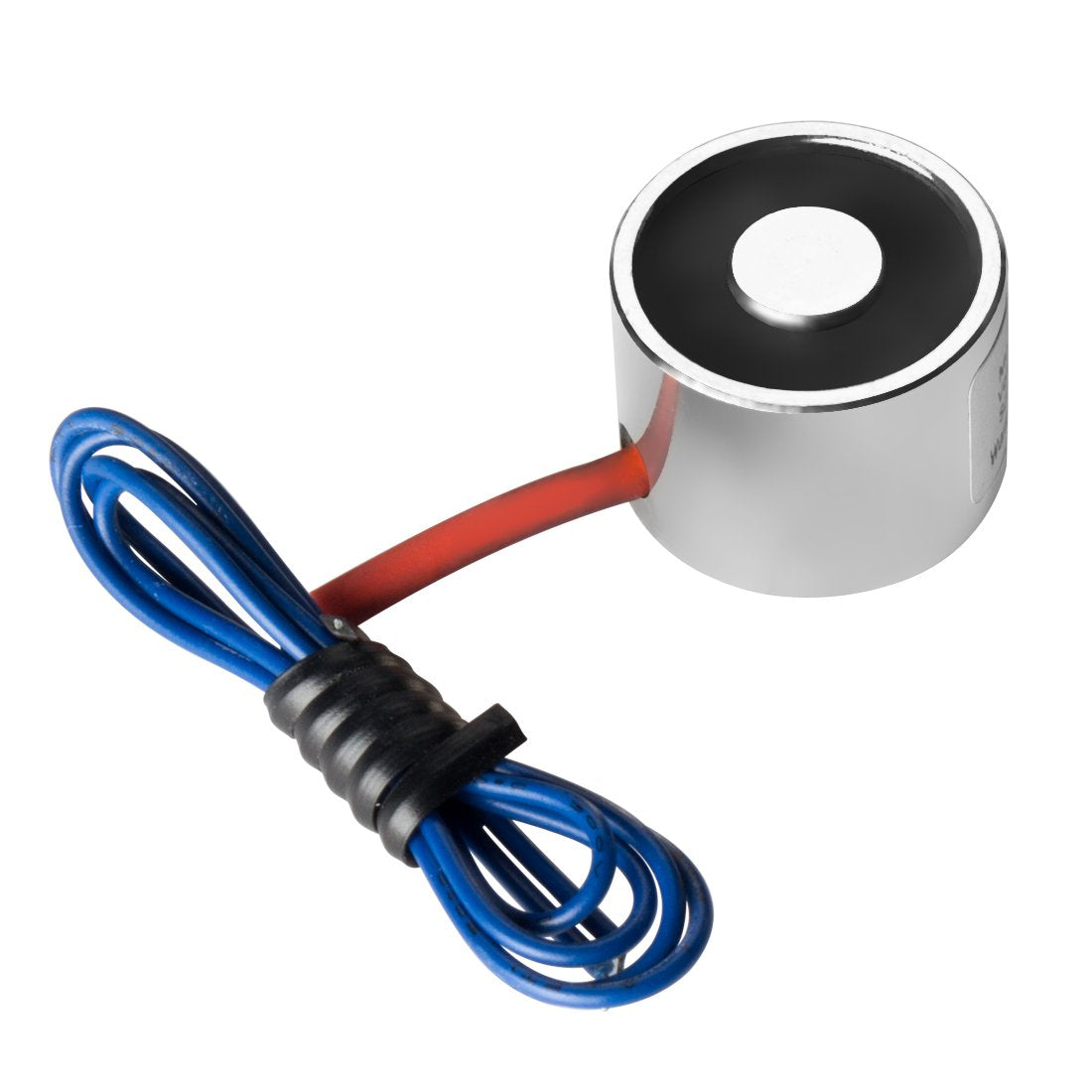

uxcell 12V 25N Electric Lifting Magnet Electromagnet Solenoid Lift Holding

Brand: uxcell

Color: Silver

Features:

• Input Voltage: 12V DC; Holding Force: 25N; Duty-cycle: 50%; Electric : Less than 7 minutes; Thread size: M3*6
• Overall Size : 20 x 15 mm / 0.8 x 0.6 inch(Dia. *T)
• Notice: The suction force refers to the suction force generated after the electromagnet suction surface is fully in contact with the adsorbed iron block (magnetic metal); the surface of the adsorbed object should be as smooth as possible, and the adsorption area should not be smaller than the electromagnet suction surface, otherwise, it will affect suction.
• Advantages: Electric lifting magnet; Powerful and compact; Smooth and flat surface; Low consumption and reliable
• Applications: assembly line, sorting machine, mechanical arm, experimental facility, etc

model number: a16101700ux0241

Part Number: a16101700ux0241

Details: Feature:
Electric lifting magnet
Powerful and compact

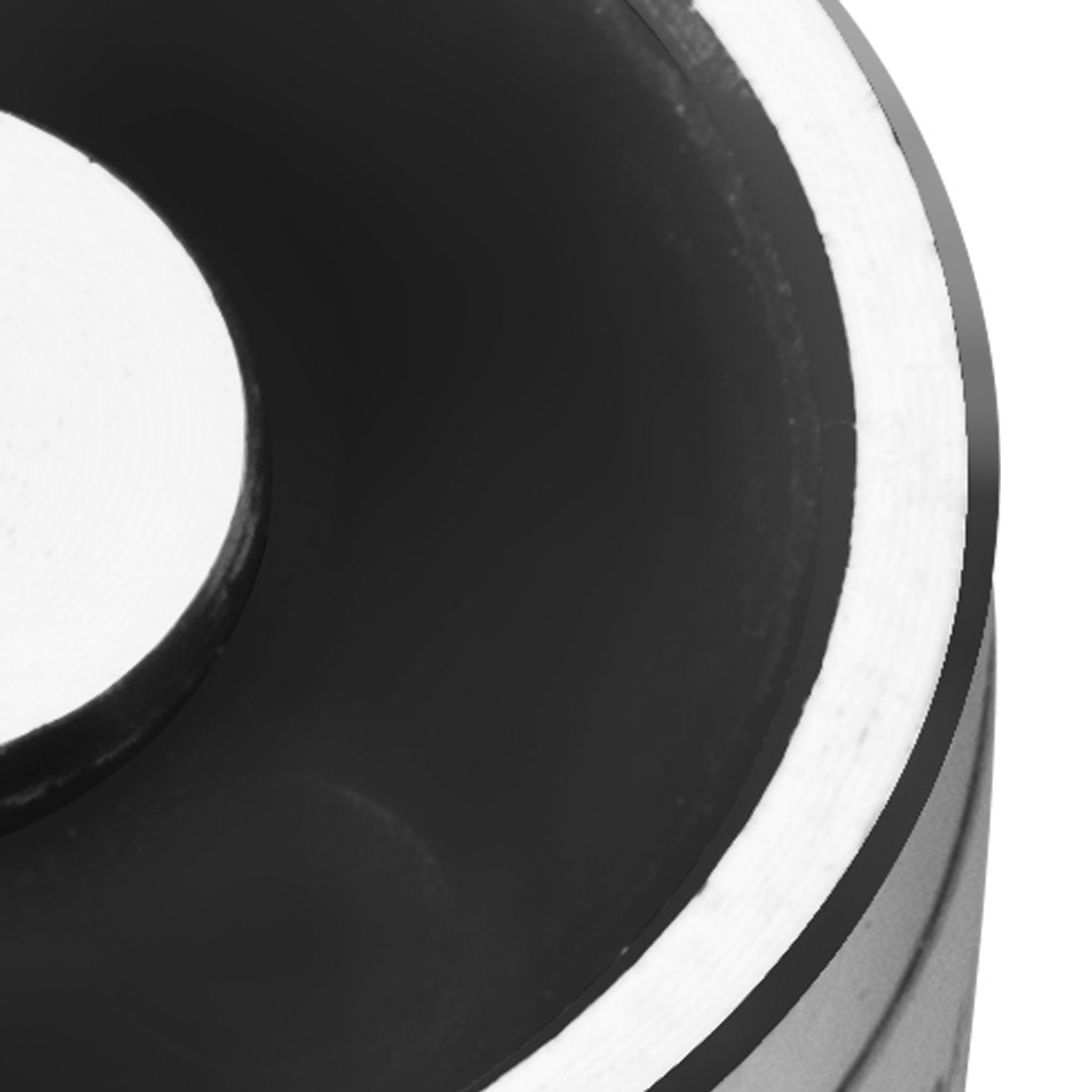

Smooth and flat surface
Low consumption and reliable
Applications: assembly line, sorting machine, mechanical arm, experimental facility, etc

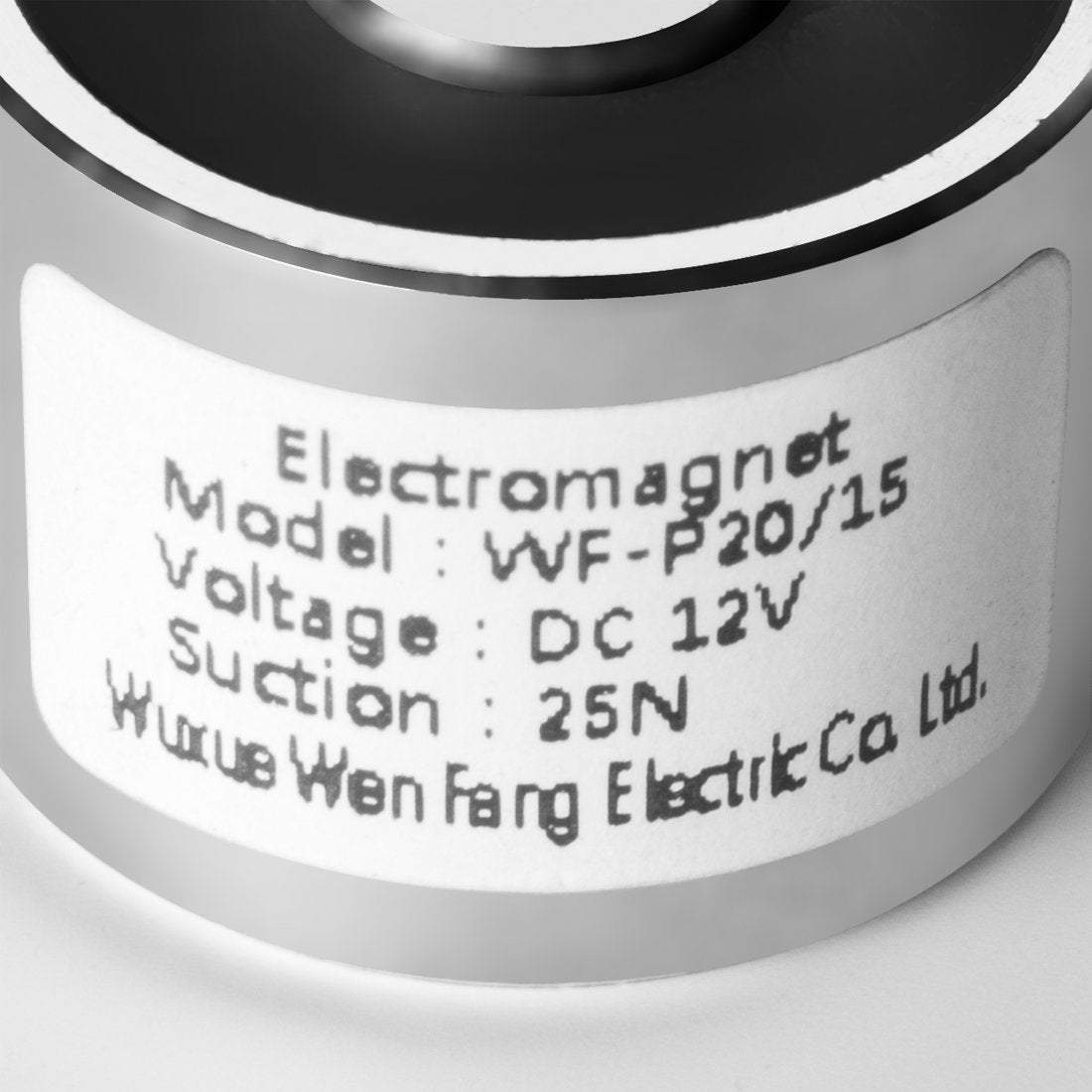

Notice: The Force will be decreased due to long time working, lower voltage and improper Sucked object, etc. It is recommended that the actual force is less than 80% of the sucked force on the name plate.

Specification:
Material: Metal
Input Voltage: 12V DC
Holding Force:25N
Duty-cycle: 50%;
Electric : Less than 7 minutes

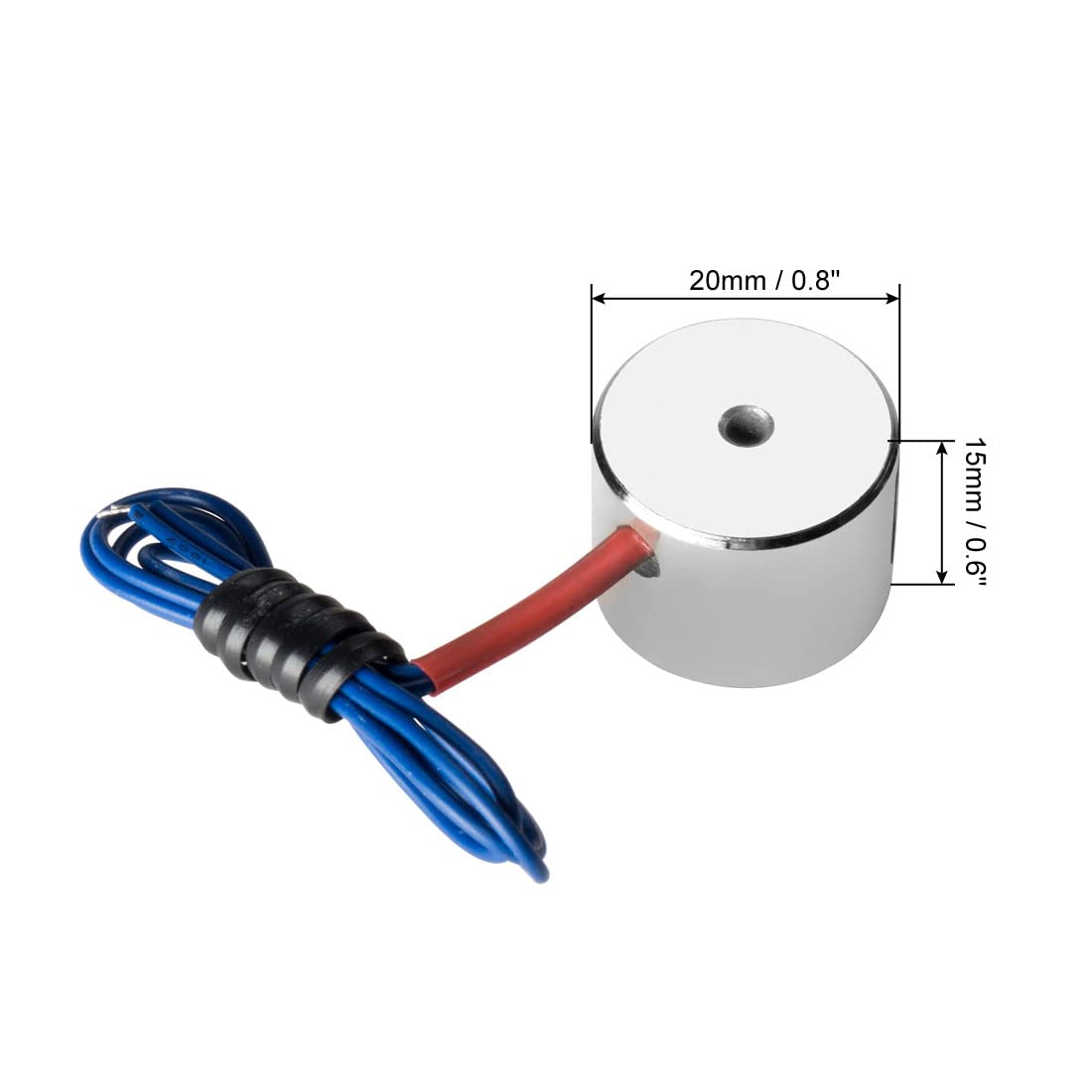

Overall Size: 20 x 15 mm / 0.8 x 0.6 inch(Dia. *T)
Thread Dia: 3mm

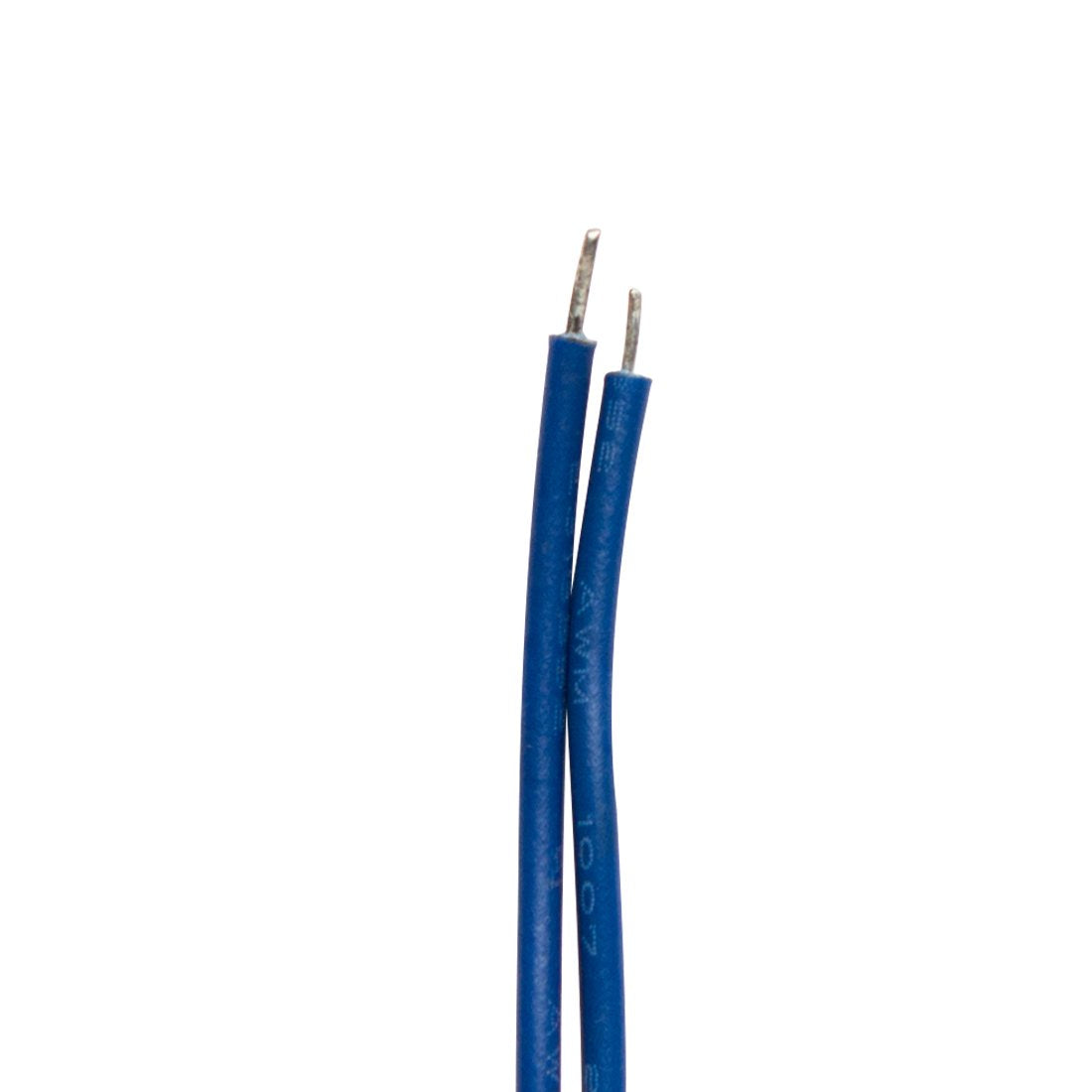

Wire Length: 24cm/9. 5 inch

Package Includes:
1 x Holding Electromagnet

EAN: 0604267002144

Package Dimensions: 4.2 x 2.8 x 0.5 inches
