Never go beyond its capabilities. Try to stay 10 to 15% below what the rate is for

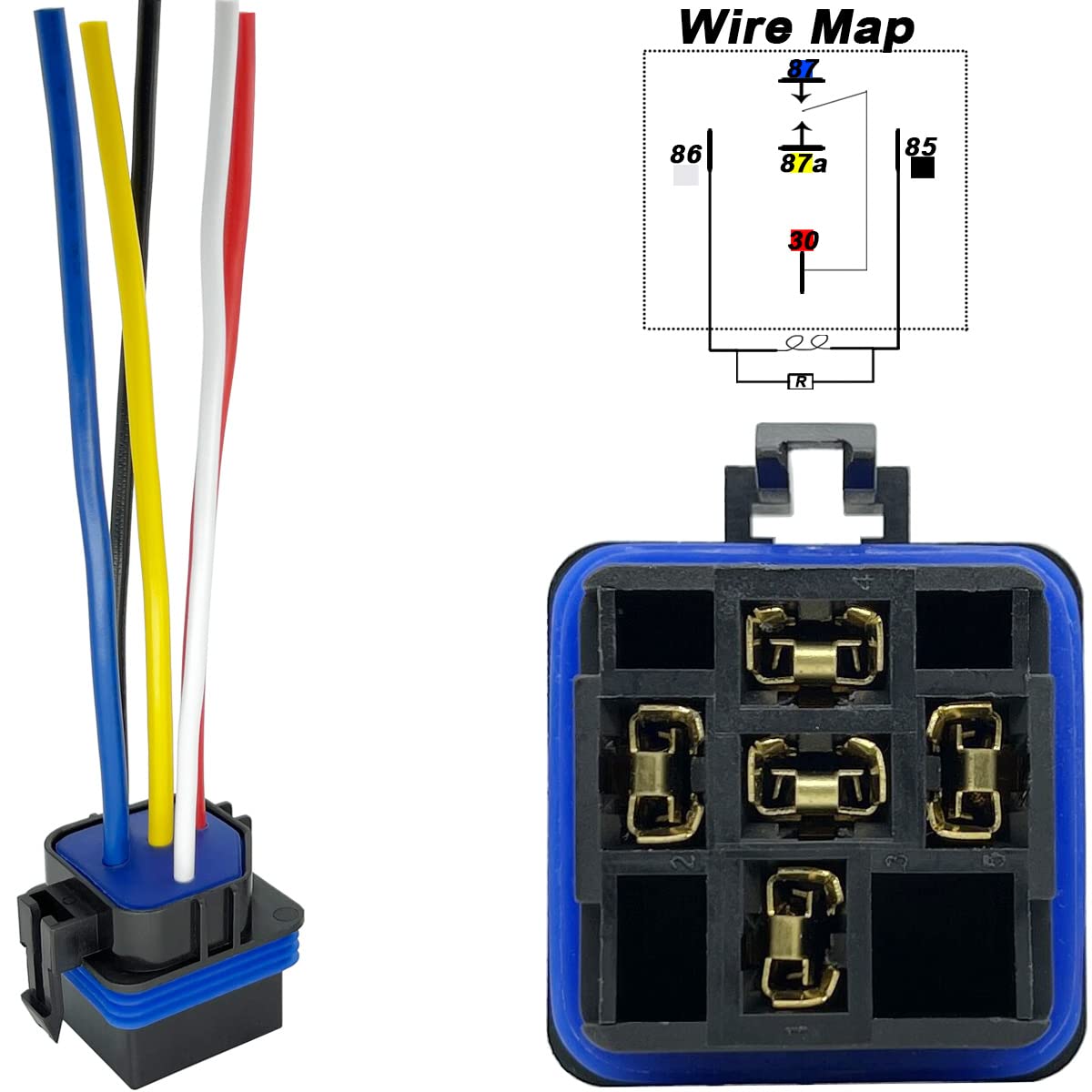

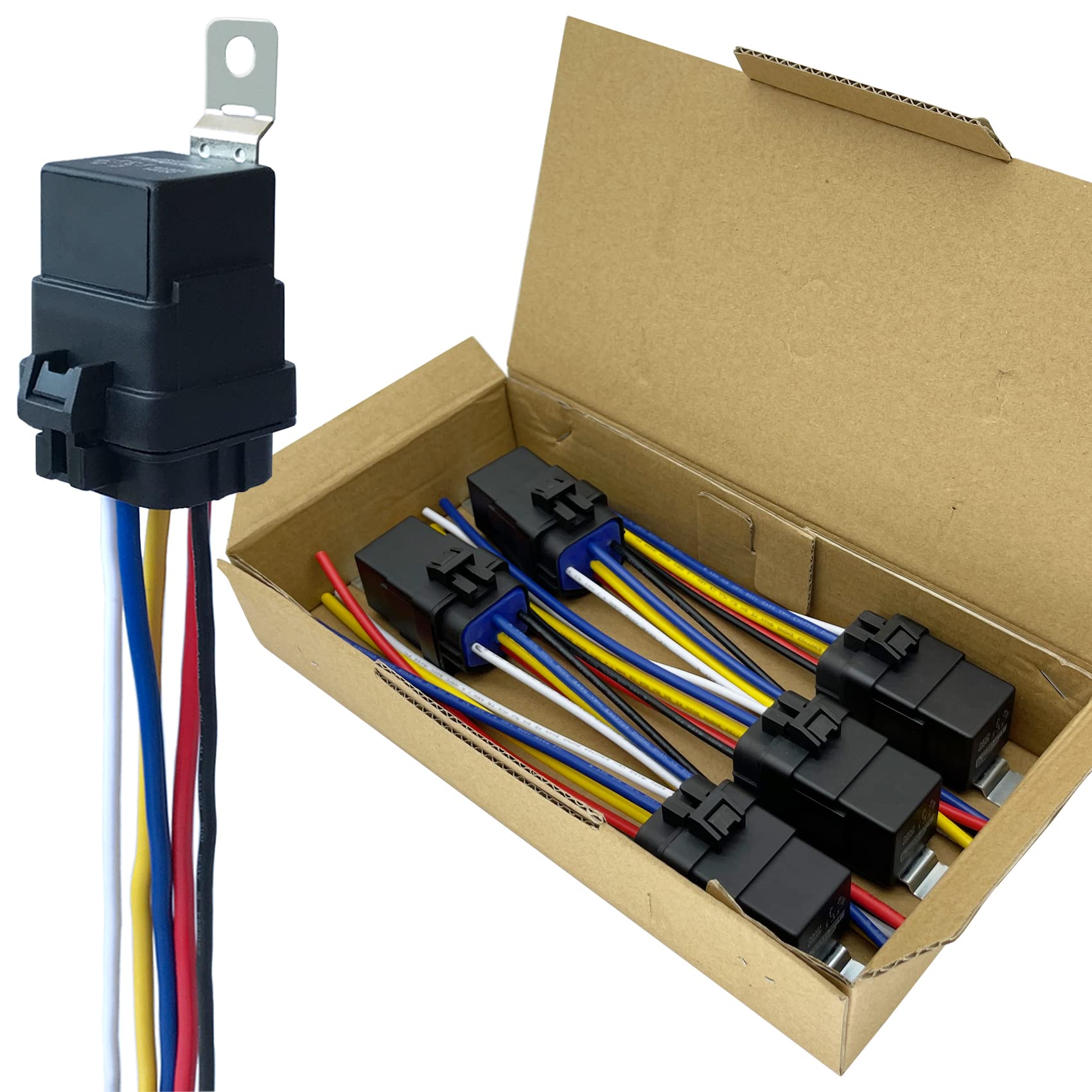

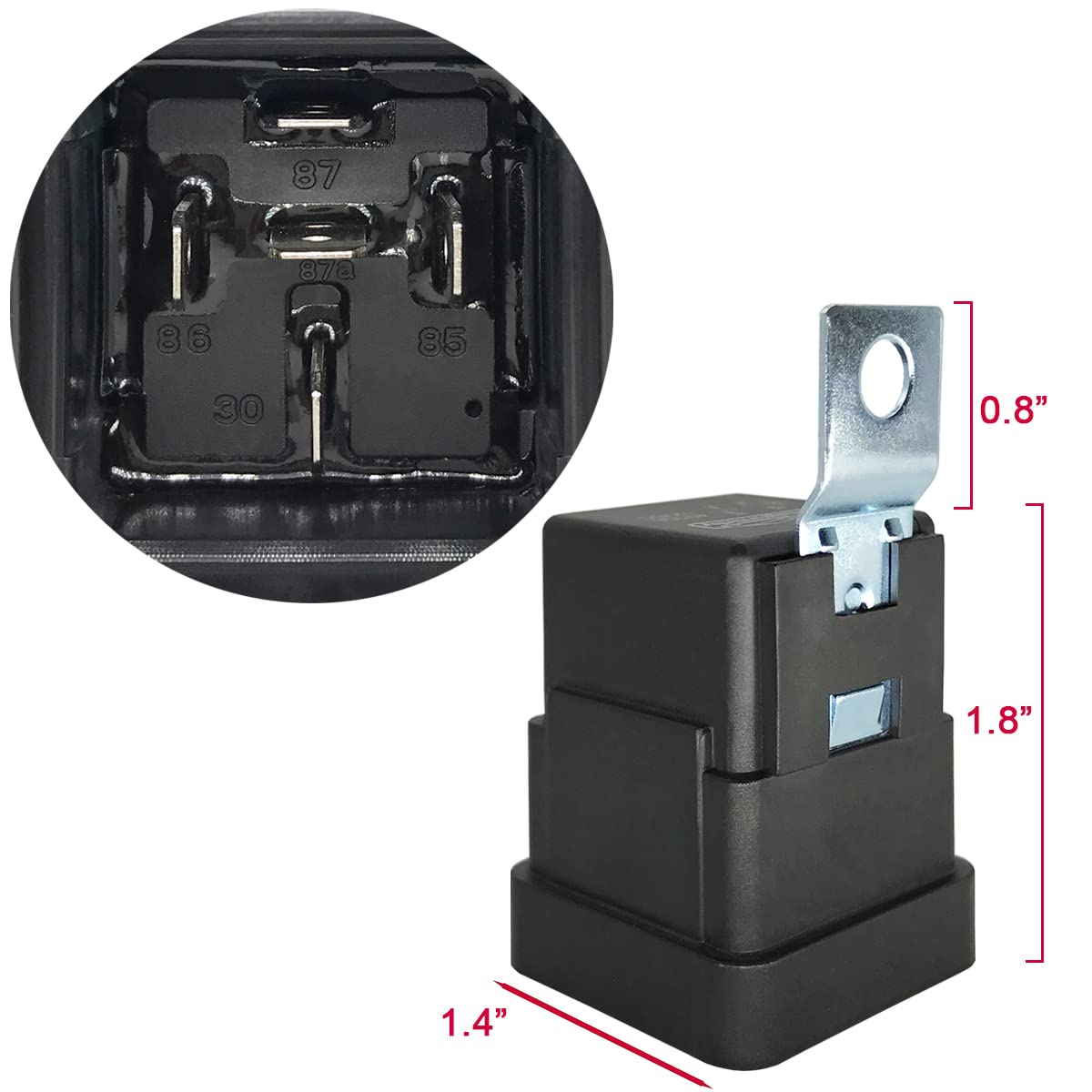

12-volt 5-prong relay. Excellent water-repellent and dustproof ability, but not using it in water
Be careful when inserting the relay into the socket. If you force it, you will bend the female connectors
Primary leads use 12 a.w.g tinned copper wire. Coil leads use 16 a.w.g
Nominal Coil Voltage: 12 V DC; Coil Power: 1.8 W; Coil Resistance: 80 Ω; Must Operate Voltage: 6~8 V DC; Must Release Voltage: 0.6~3.6 V DC; Maximum Applied Voltage: 15.6 V DC
