Electromagnet Flush Mount 500KG 1200LBS Holding Force Embed Electric Magnetic Door Lock Waterproof 12V DC Fail Safe for Door Access System

Brand: YUHANUS

Color: 500KG/1200LBS

Features:

• Materials: Stainless steel, Anti-residual magnesium designed. This magnetic door lock provides a strong sense of security with its outstanding holding force 500KG (1200LBS) and significant features.
• Size: The lock size is 10.43 x 2.95 x 1.54 inch (265 x 75 x 39 mm); Armature plate: 7.28 x 2.36 x 0.51 inch (185 x 60 x 13 mm). Holding Force: 500kg (1200lbs).
• Mode: NC Mode, Locked whilst power supply is operating, unlocked when power off; Fail-Safe Mode. Voltage: 12V DC.
• Security protection: This electric magnetic lock has safety function. It is built in voltage spike suppressor. This surface of this Electromagnet Lock is waterproof, so it can be installed outside.

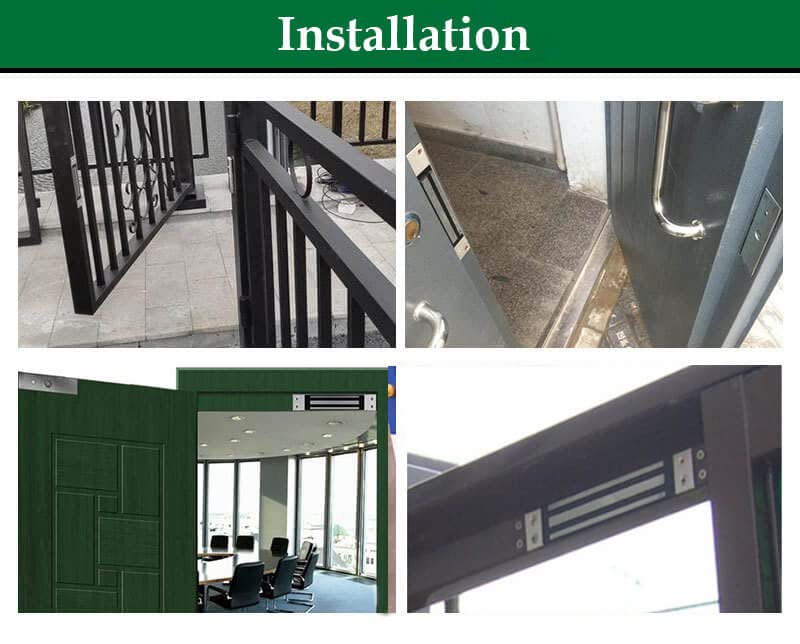

• Embedded Installation: Flush Mount. Please check before purchase to see if your door fits to install this magnetic lock. It is suitable for Wooden Door, Metal Door, Fireproof Door, etc.

Binding: Tools & Home Improvement

model number: 769894490426

Part Number: 769894490426

Details: Electromagnet Flush Mount 500KG 1200LBS Holding Force Embed electric magnetic door lock Waterproof 12V DC Fail Safe for door access system

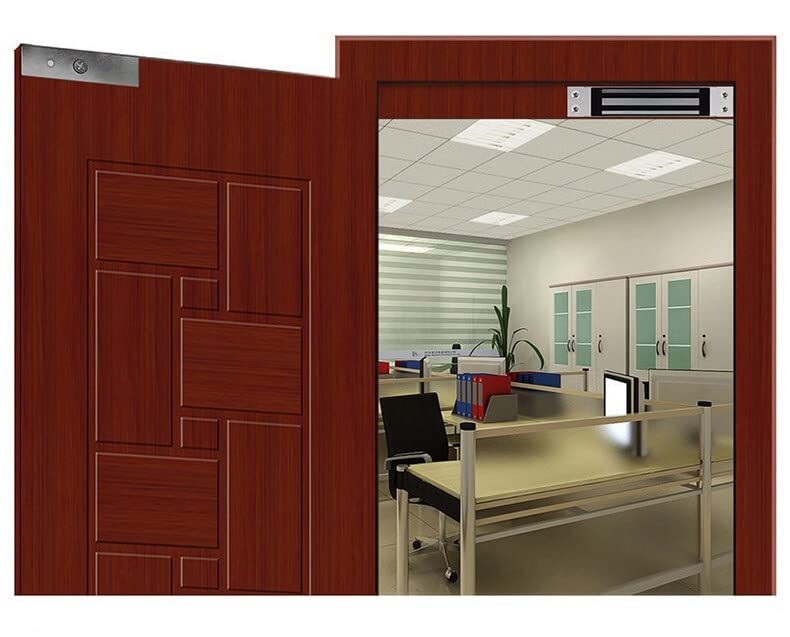

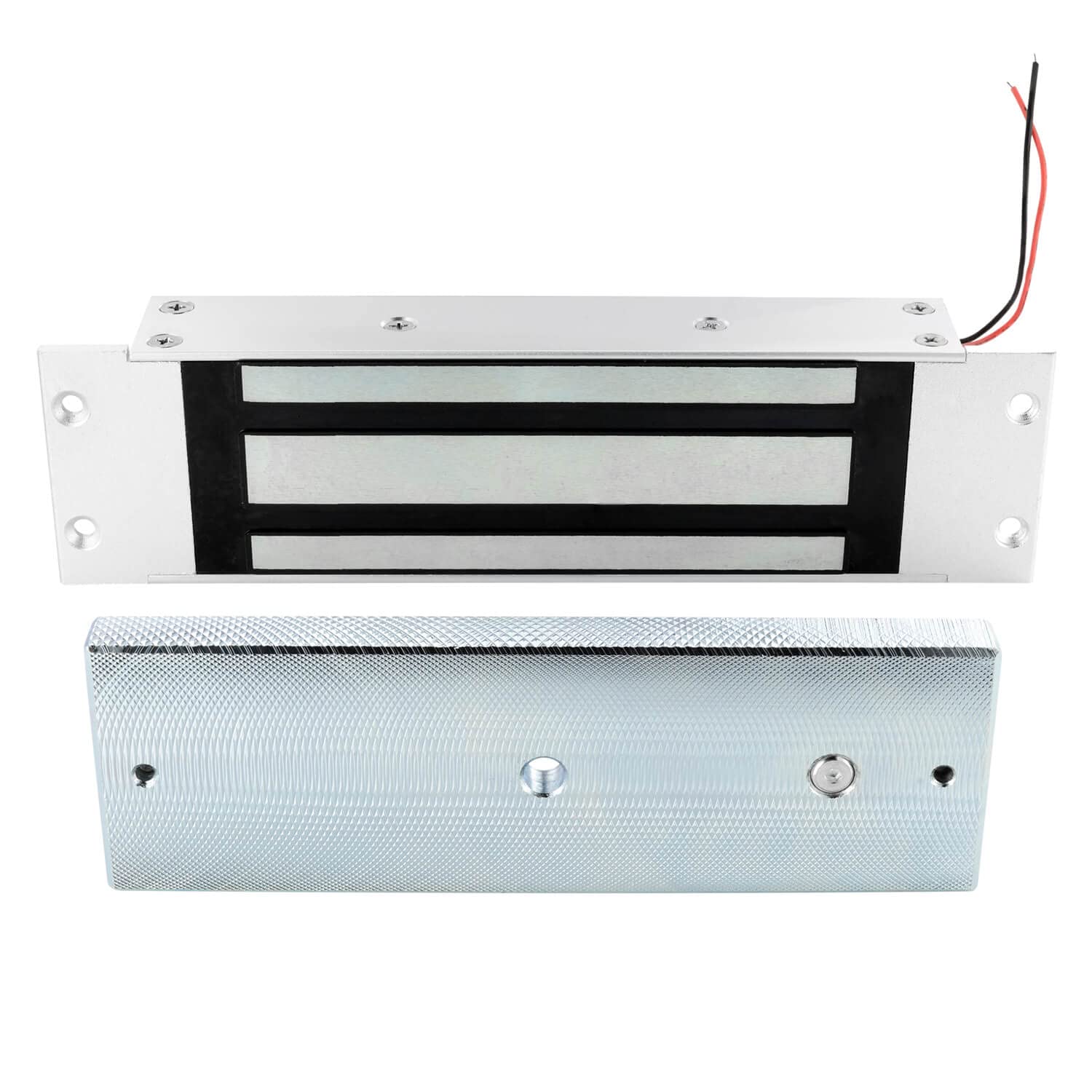

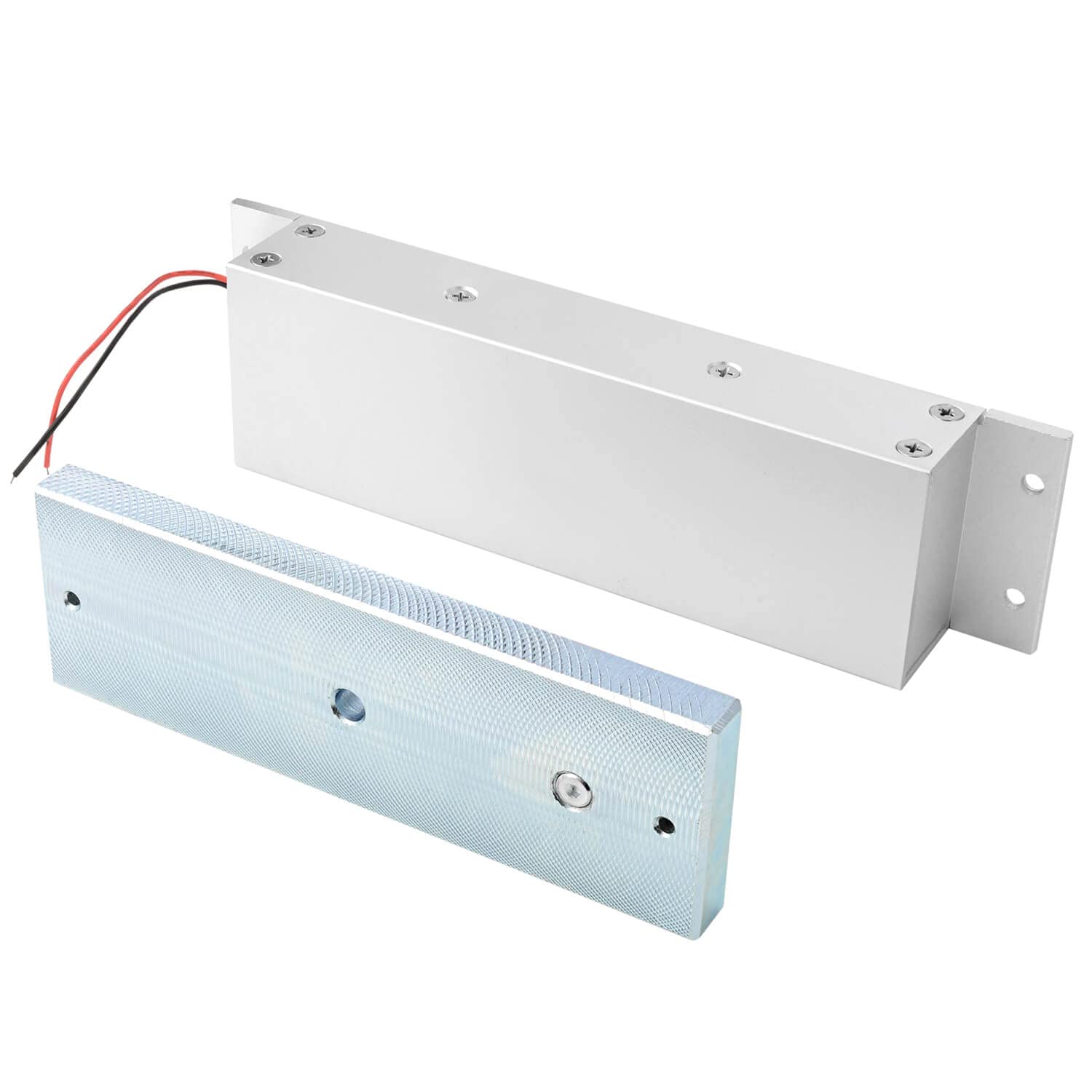

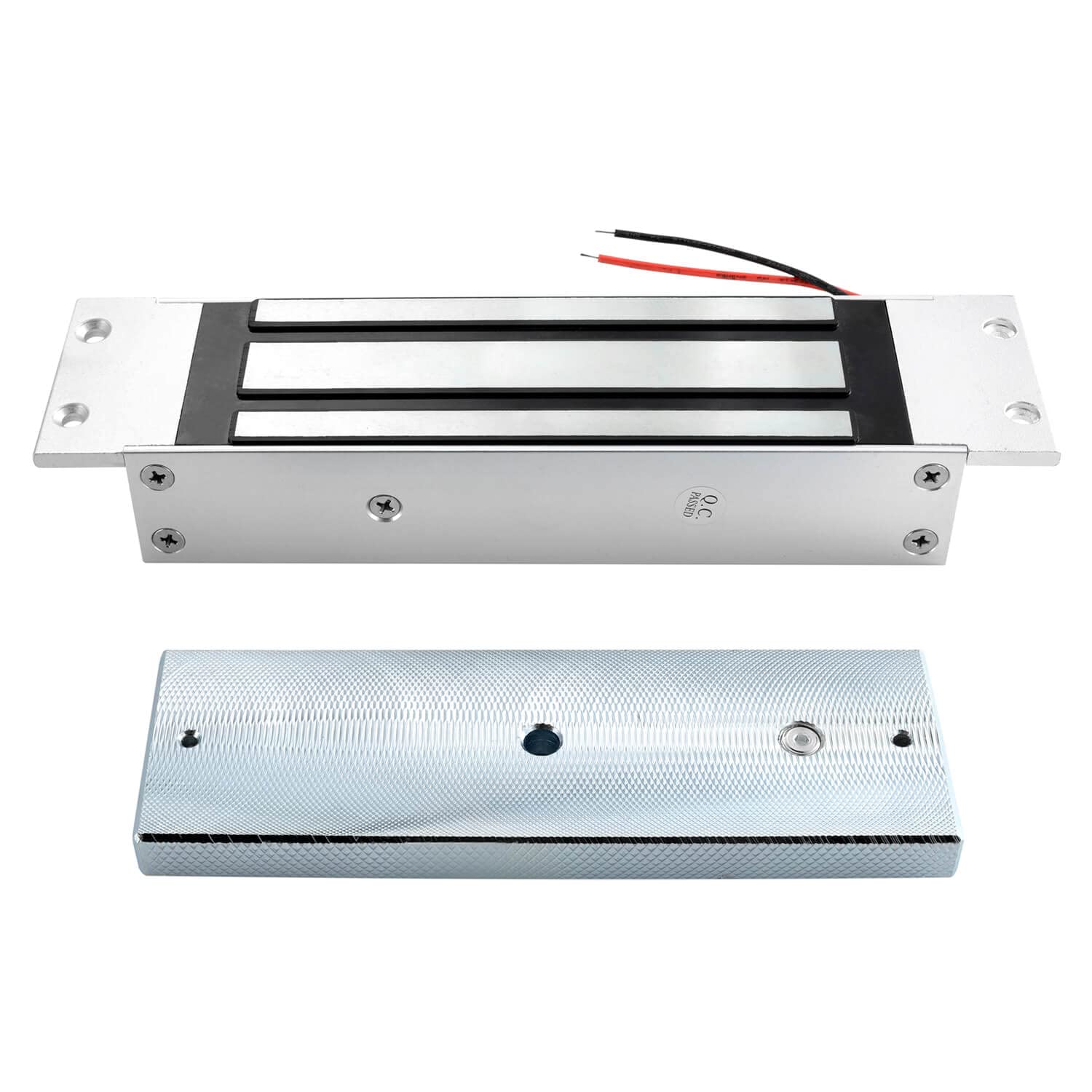

This electric magnetic lock consists of an electromagnet and an armature plate used for access control door locks.

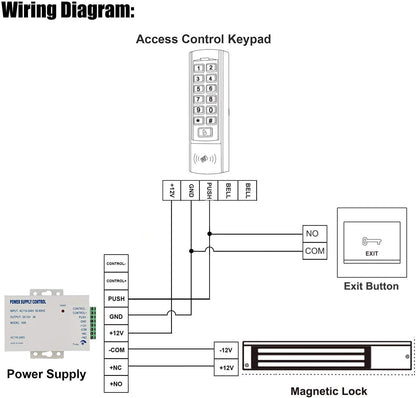

By attaching this to the door frame and the armature plate to the door, a current passing through the electromagnet attracts the armature plate, holding the access control door lock shut.

The door will be closed when power is on; when power off, the door will open.
Embedded Installation: Flush Mount. Please check before purchase to see if your door fits to install this magnetic lock.
It is suitable for Wooden Door, Metal Door, Fireproof Door, etc.
This surface of this Electromagnet Lock is waterproof, so it can be installed outside.

Specification:

Electromagnetic plate Material: Aluminum Alloy + Metal Plate
Armature Plate Material: Zinc
Cover Finish: Anodized aluminum
Color: Silver
Holding Force: 500kg/1200lbs
Input Voltage: DC 12V
Operating Temp: -10 ~ +55C (14-131F)
Operation Current: 480mA

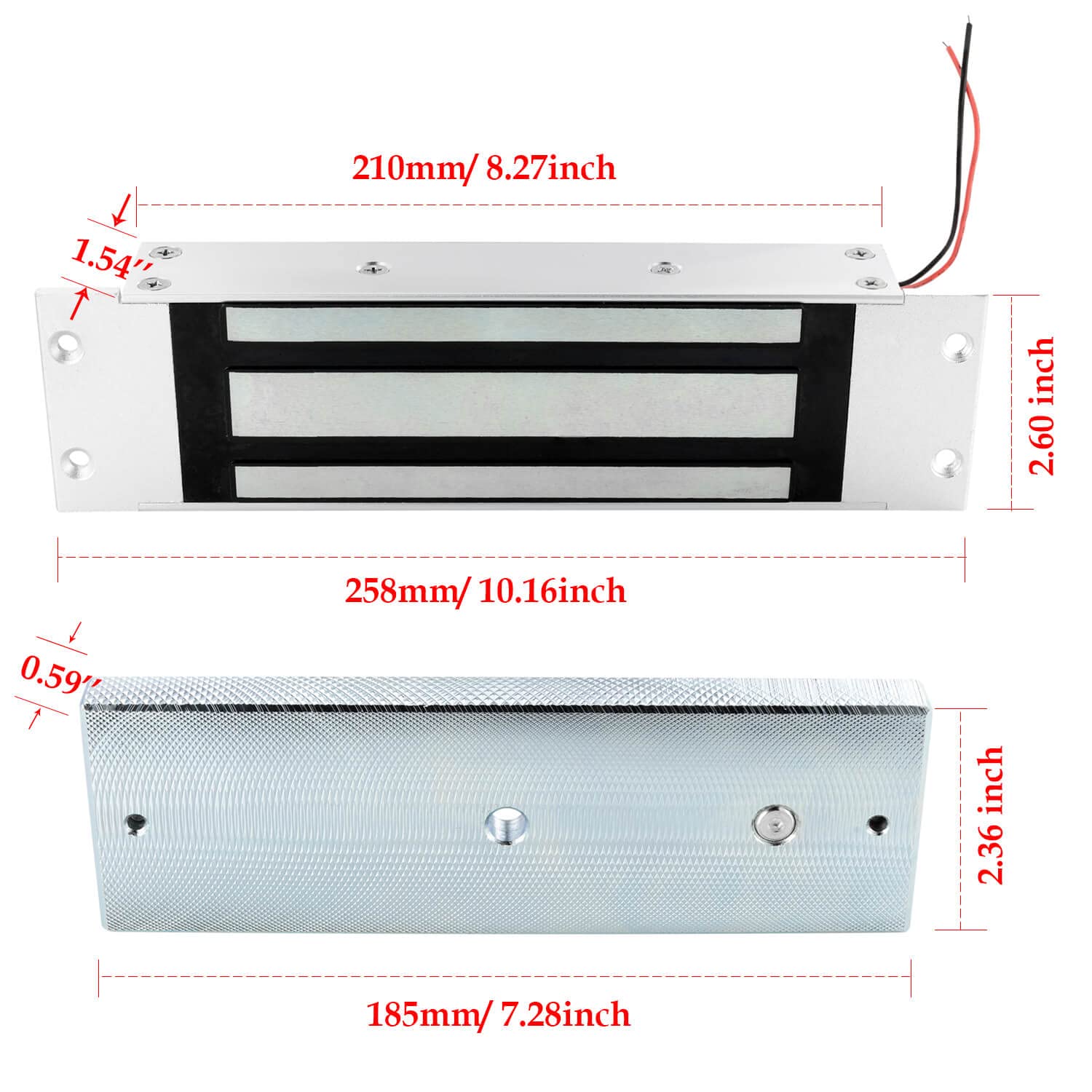

Size: 10.43L x 2.95W x 1.54H (inch)/ 265L x 75W x 39H (mm)
Armature plate: 7.28L x 1.50W x 2.36H (inch)/ 185L x 60W x 13H (mm)
Package Weight: Approx. 9.3lb (4.2KG)

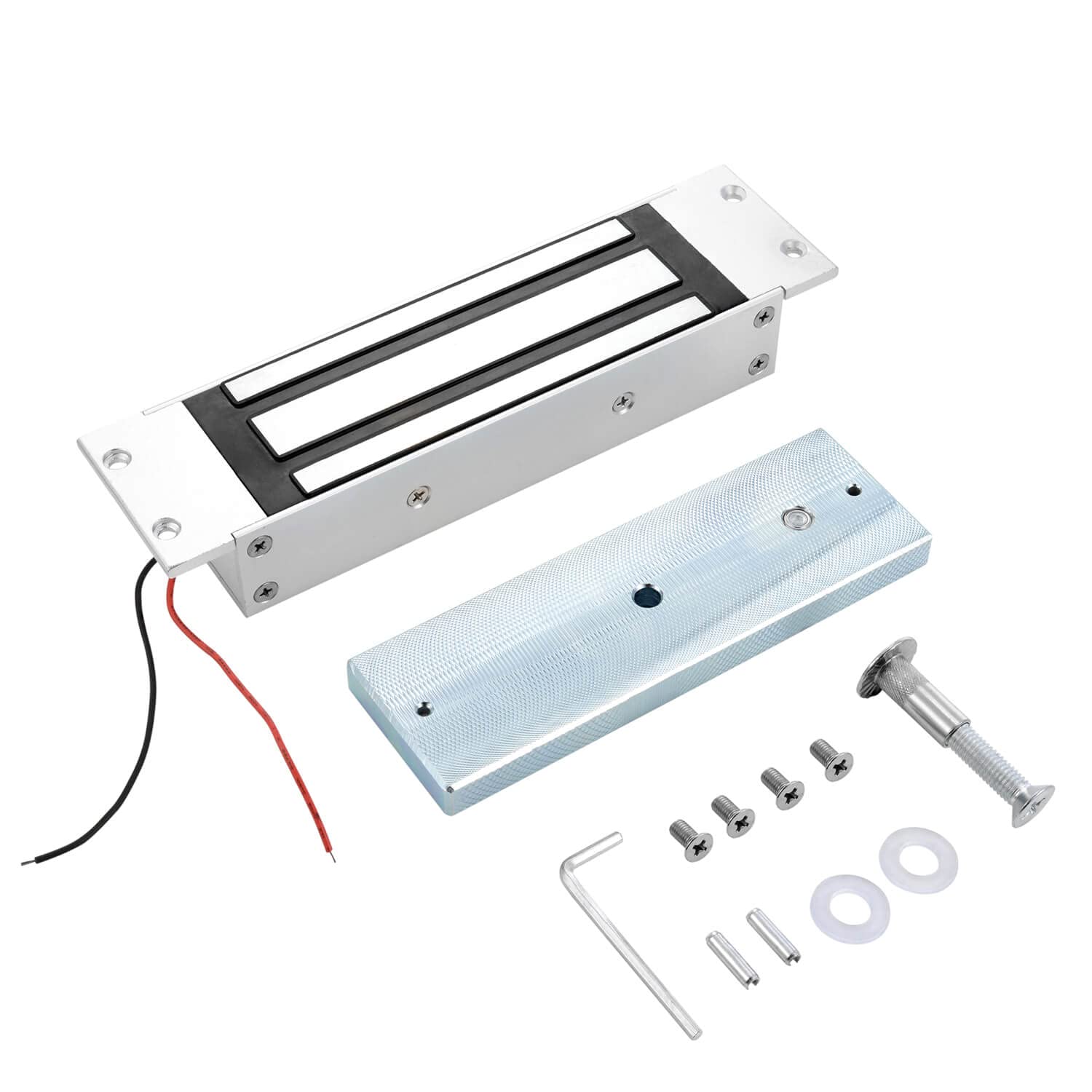

Package list:

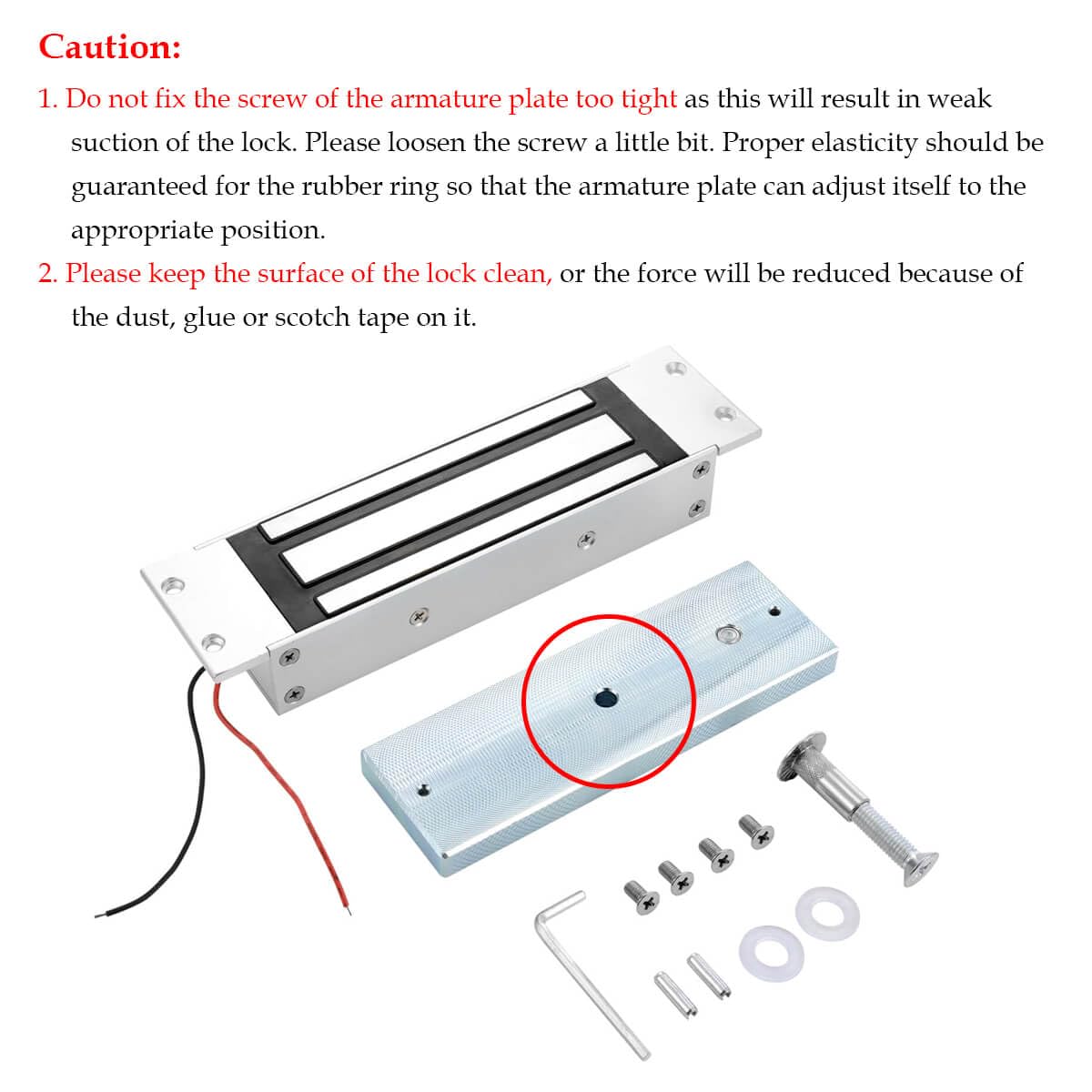

1 * Electromagnetic Lock
1 * Armature Plate
1 * Screws Pack
1 * User Manual (English)

EAN: 0769894490426

Package Dimensions: 11.3 x 10.5 x 3.0 inches
