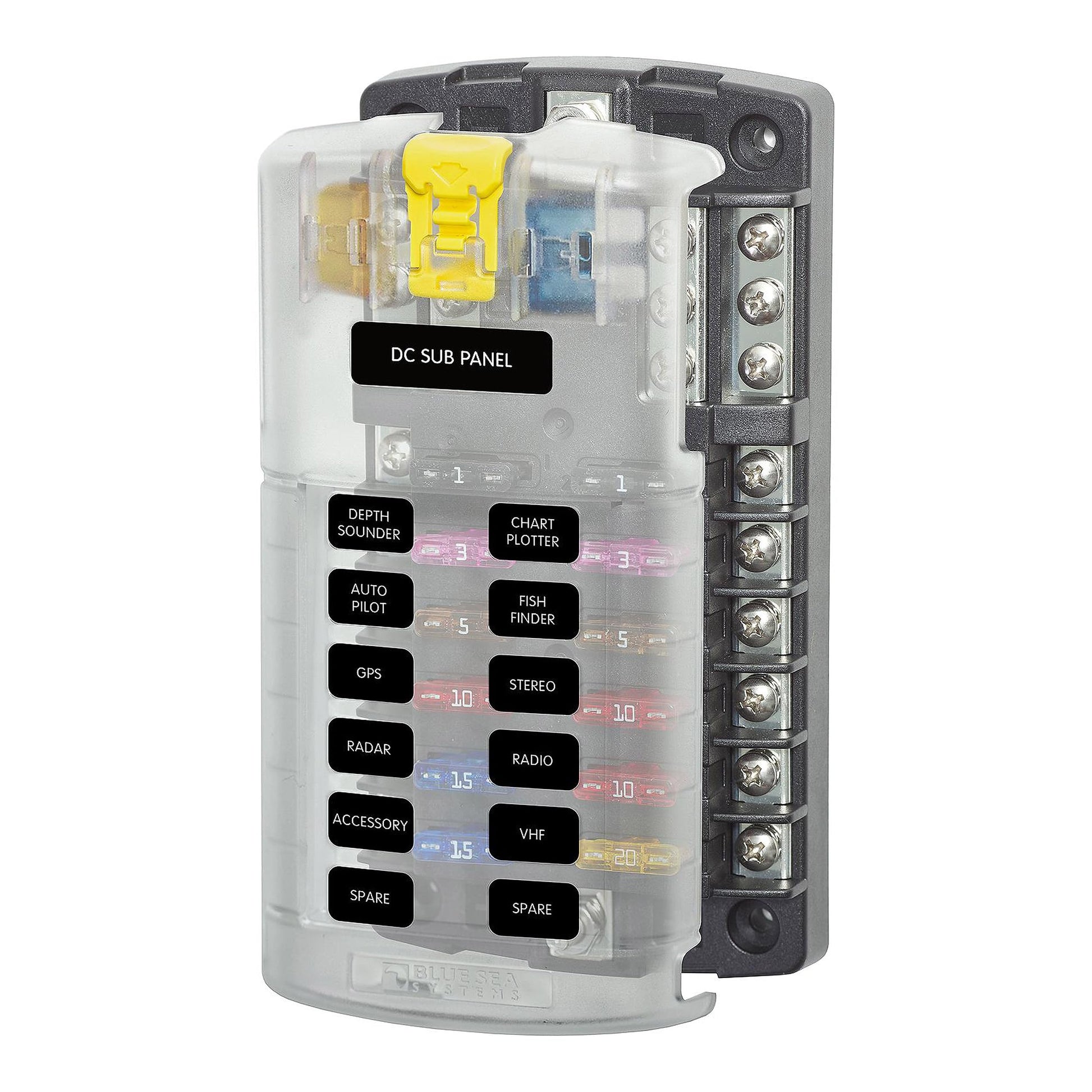

Blue Sea Systems Fuse Block ST Blade 12 Circuit with Ground and Cover, part number 5026, can be used for 24-hour circuits

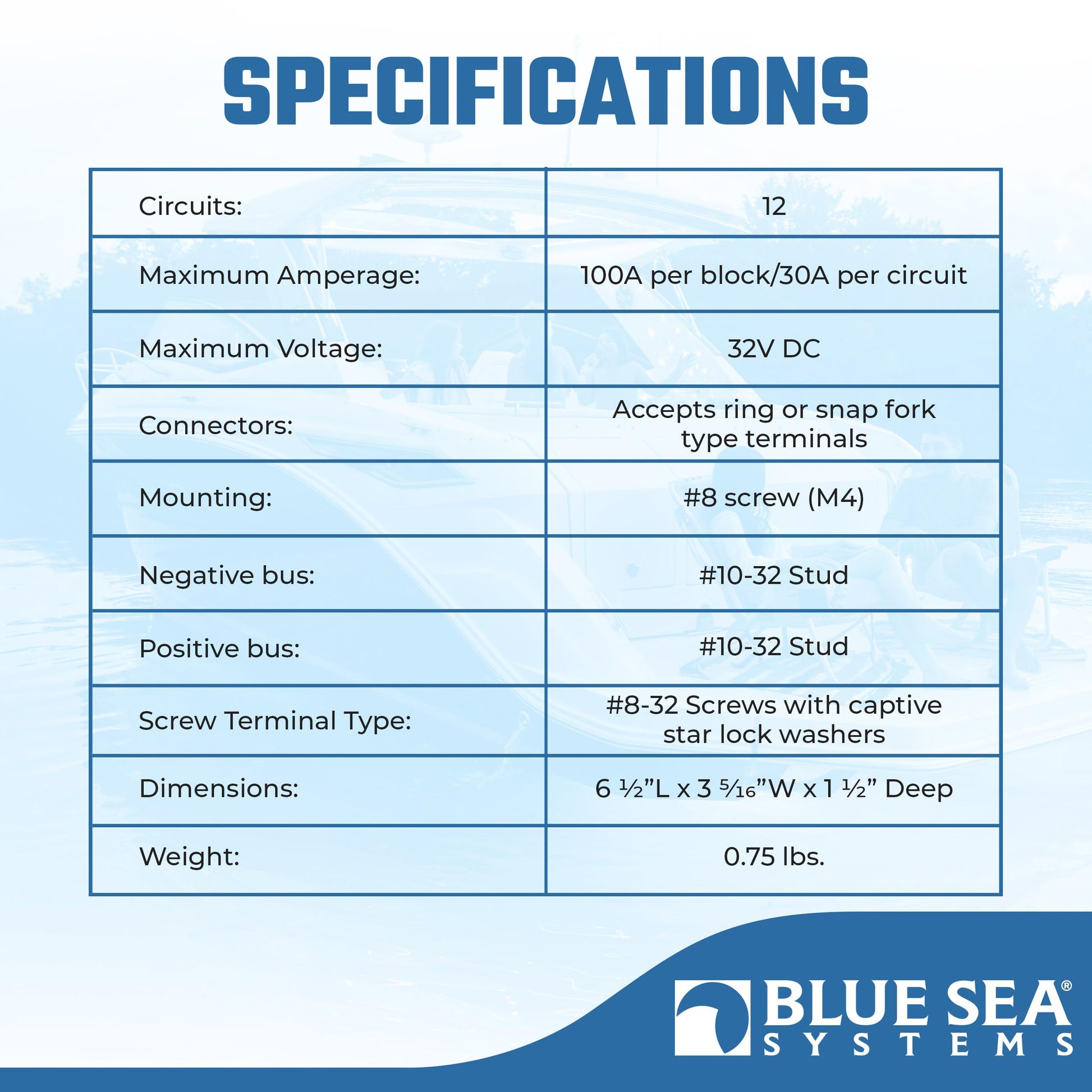

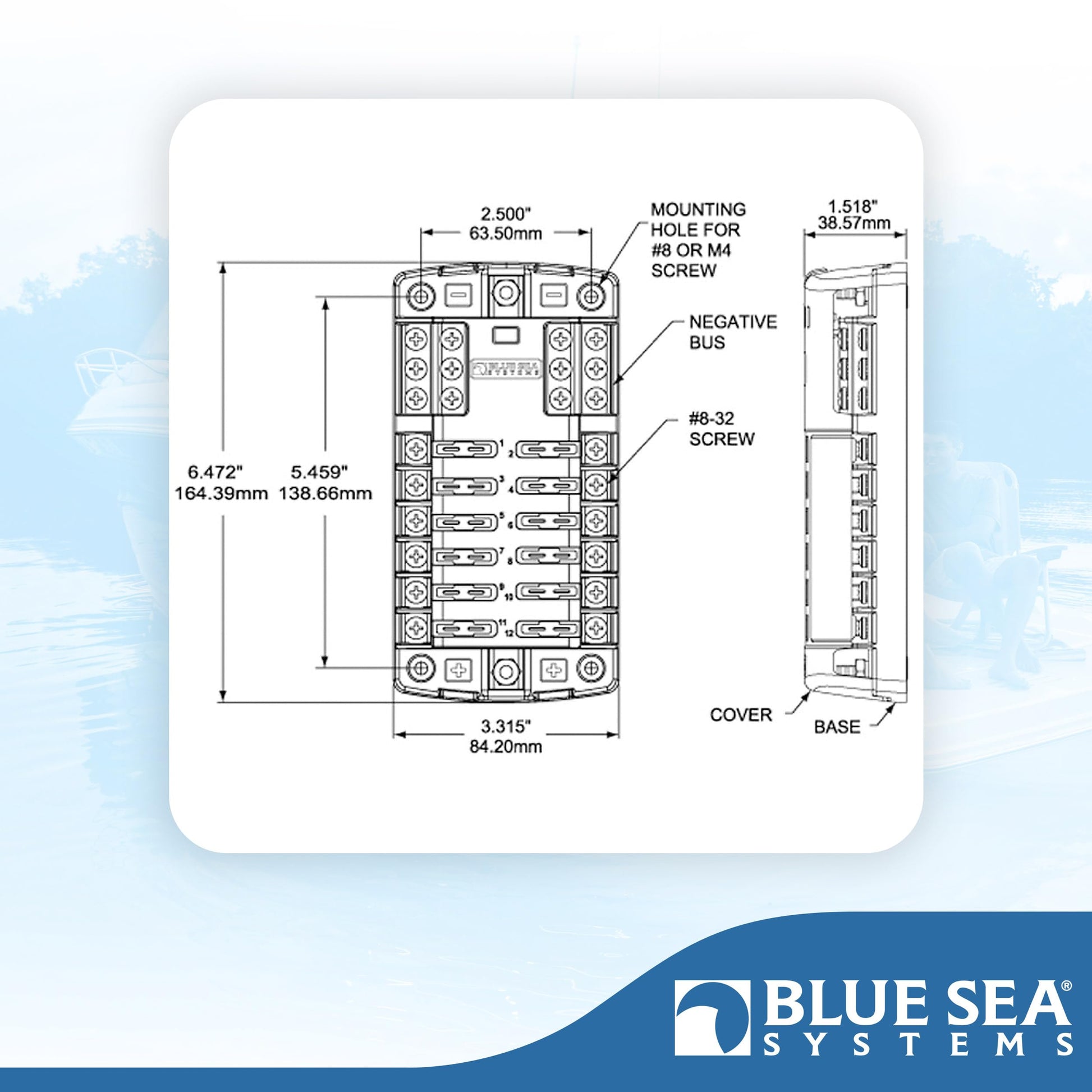

Max Amps: 100A per block, 30A per circuit, Max Volts: 32V DC, Mounting :#8 (M4) Screw, Negative bus: #10-32 stud, Positive bus: #10-32 stud, Recommended Stud torque: 24 in-lb, Screw Terminal Torque: 18in-lb, Screw terminal type: #8-32 screws with captive star lock washer
Positive distribution bus with #10-32 stud

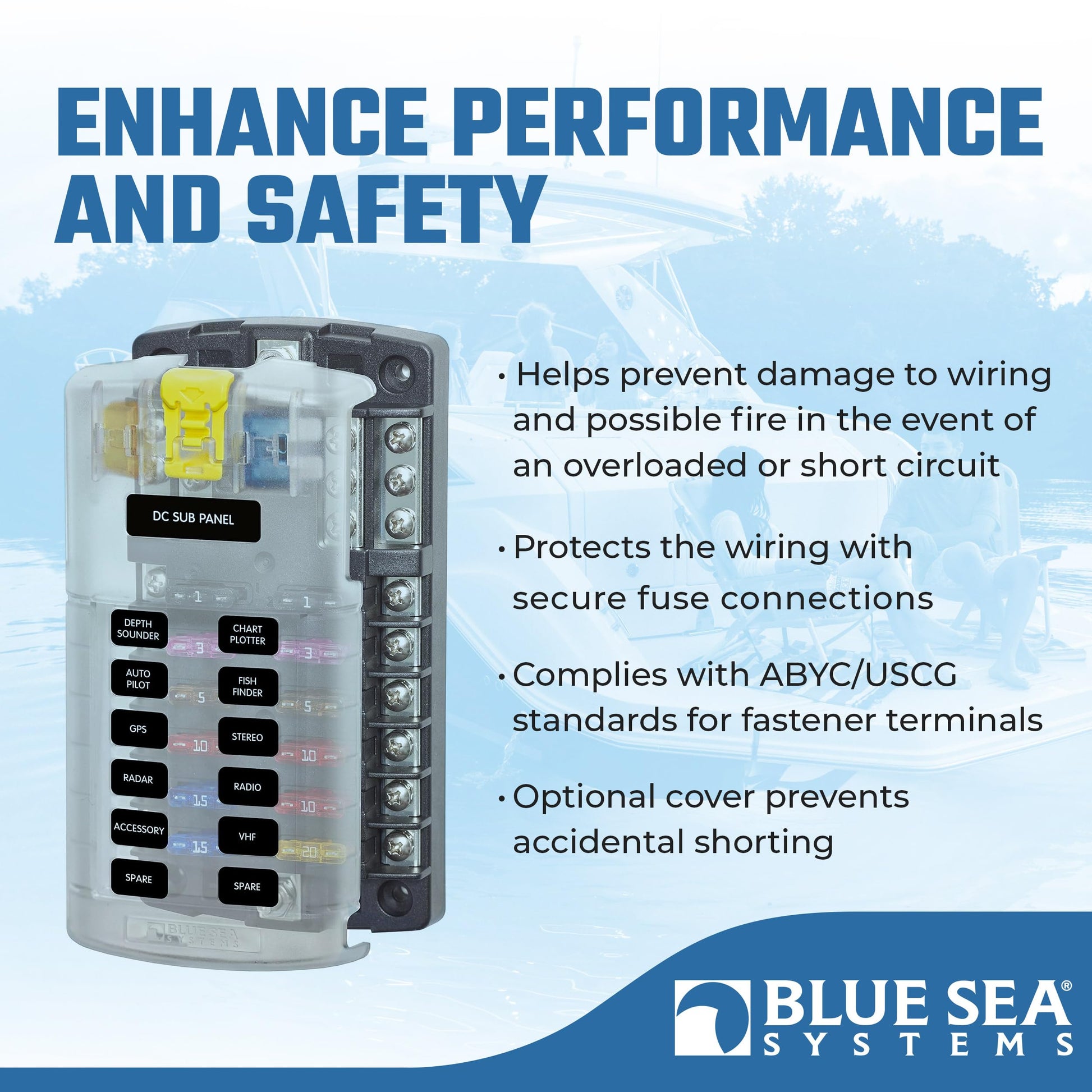

Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements and has a push button latch that is easy to open
Accepts ring or spade type terminals and ATO/ATC fast acting blade fuses - fuses sold separately. Includes 20 write on circuit labels
Binding: Sports
Release Date: 10-01-2011
model number: 5026
Part Number: 5026
Details: Blue Sea Systems Fuse Block ST Blade Battery Terminal Mount 4 Circuit Kit , part number 5024, allows you to easily add 4 fused circuits to the terminal of a battery. Max Amps: 100A per block, 30A per circuit, Max Volts: 32V DC, Mounting hole: 3/8" (M10) stud, Screw Terminal Torque: 18in-lb, Screw terminal type: #8-32 screws. Mounts on the battery terminal stud and provides power to new accessories in your boat or vehicle. Ignition Protected–meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment. ABYC/USCG compliant insulating cover, 4-circuit negative busbar, write on labels, and four 16-14 AWG and four 12-10 AWG Nylon insulated ring terminals included.
